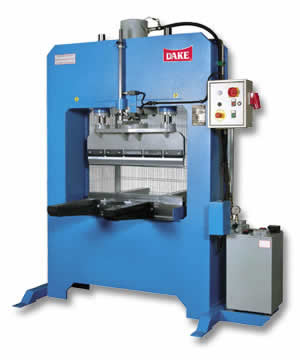

PDL.NC Hydraulic Press Brake

Guided platen hydraulic H-Frame press brake. The PDL series goes from 40 to 150 Tons and is a manual 2 post design.

Also available as semi-automatic & automatic models click here



Features

  • 2 speed power unit
  • V forming dies on upper and lower sides of platen
  • Smooth Joy stick control
model PDL 40NC  PDL 70NC  PDL 100NC  PDL 100BNC
capacity (tons) 40 70 100 100
horsepower 5.5 5.5 5.5 5.5
ram speed advance (ipm) 21 24 24 24
ram speed pressing (ipm) 21 12 9 9
ram travel 13 13 13 13
daylight (in) 9-3/4 9-3/4 7-3/4 7-3/4
width between uprights 35 35 41 61
dimensions 67 x 28 x 81 67 x 28 x 85 75 x 34 x 85 97 x 40 x 89
V brake 32 32 32 39
weight (lbs) 2,315 2,976 4,850 6,283



model PDL 100CNC  PDL 150NC  PDL 150CNC
capacity (tons) 100 150 150
horsepower 5.5 5.5 5.5
ram speed advance (ipm) 24 21 21
ram speed pressing (ipm) 9 7 7
ram travel 13 13 13
daylight (in) 7-3/4 7-3/4 7-3/4
width between uprights 61 61 61
dimensions 97 x 40  x 89 103 x 40  x 93 103 x 40 x 93
V brake  59 39 59
weight (lbs) 6,724 11,244 12,126
