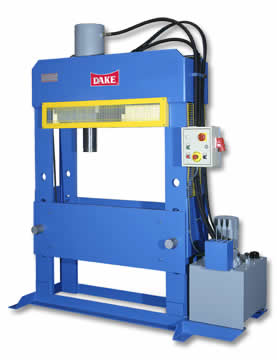

Dake PFF Hydraulic Press, Large H-Frame Hydraulic Press

H-Frame Hydraulic Press – This is large heavy duty hydraulic press. Presses are available from 70 to 400 Tons and have flexibility for many processes.

Call me, Jason, at  1-800-748-9068  and get your best quote !
I’ll answer your questions and make an honest recommendation for the right press.
I can save you some trouble and save you some dollars.

BUY or LEASE

Dake PFF hydraulic PressFeatures

  • Assembly, bending, broaching, forming and straightening
  • Powerful hydraulic table lift
  • Joy stick control
  • H-Frame Hydraulic Press

Option:

  • fixed, manual or lateral cylinder travel
  • Table Plate
  • Anti-rotation shipper rod guide
  • semi-automatic



Dake PFF Hydraulic Press

modelPFF 70 PFF 70M PFF 100 PFF 100M
capacity (tons)7070100100
horsepower2233
ram speed advance (ipm)47475959
ram speed pressing (ipm)4444
ram travel19191919
daylight (inches)37373737
width between uprights (inches)35354141
Dimensions67x28x9567x28x9577x34x9877x34x98
workhead travel l to r (inches)fixed21 manualfixed26 manual
weight (lbs)1786187425362646



modelPFF 100MC PFF 150 PFF 150M PFF 150MD
capacity (tons)100150150150
horsepower35.55.55.5
ram speed advance (ipm)59525252
ram speed pressing (ipm)4777
ram travel19191919
daylight (inches)37373737
width between uprights (inches)59595978
dimensions99x40x10199x40x10799x48x107122x48x109
workhead travel l to r (inches)45 manualfixed34 hydraulic57 hydraulic
weight (lbs)3969485055127276



modelPFF 200 PFF 200M PFF 200MD PFF 300
capacity (tons)200200200300
horsepower5.55.55.57.5
ram speed advance (ipm)47474747
ram speed pressing (ipm)4444
ram travel19191919
daylight (inches)35353533
width between uprights (inches)59597859
dimensions106x59x115106x59x122122x71x122110x59x126
workhead travel l to r (inches)fixed39 hydraulic55 hydraulicfixed
weight (lbs)63948267925913228
modelPFF 300MD PFF 400 PFF 400MD
numbern/a n/a n/a
capacity (tons)300 400 400
horsepower7.5 10 10
ram speed advance (ipm)47 47 47
ram speed pressing (ipm)
ram travel19 19 19
daylight (inches)33 33 33
width between uprights (inches)78 59 78
height (inches)126 126 130
base (inches)130×71 114×71 134×71
workhead travel l to r (inches)51 inchfixed 51 inch
weight (lbs)14330 15432 17637
