Unique Elite 110/65 Edwards Ironworker includes two work station, which can used simultaniously. This advanced feature rich ironworker  has a ** Hydraulic Power pack built in to power the variety of Edwards Ironworker hydraulic accessories. Standard tolling includes a 110 ton Punch, a 14″ wide flat bar shear, an angle shear capable of cutting a 5 x 5 x 3/8 inch angle plus a coper notcher.

FREE SHIPPING on Edwards Ironworkers + select 6 sets of punches +

Call me, Jason, at  1-800-748-9068  and get your best quote !
Thanks for visiting
Let me answer any questions and direct you to the best ironworker for your application
for the best price.
BUY or LEASE

2 Independent Power Plants

elite 110-65 dual station ironworker - call for dicsounts
elite 110-65 dual station ironworker – call for discounts

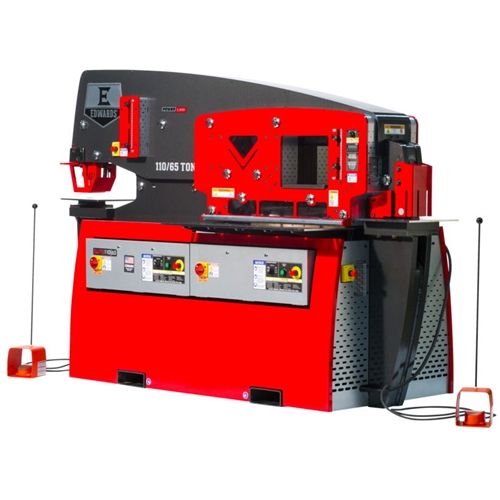

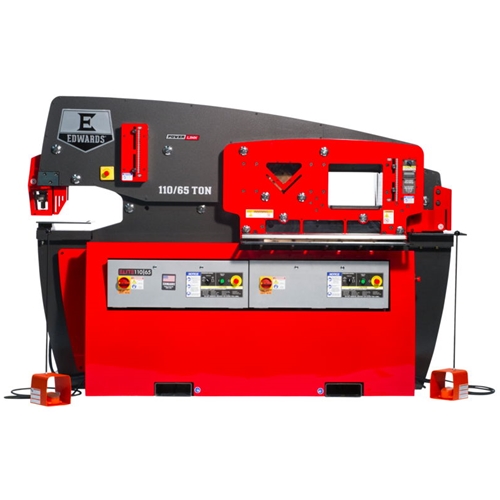

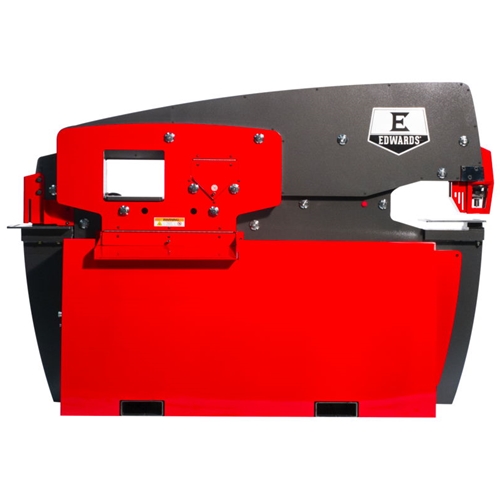

elite 110-65 dual station ironworker full front elite 110-65 dual station ironworker from rear elite 110-65 dual station ironworker facing left - call for price



Elite 110-65 dual station ironworker specifications

Standard Motor
7.5 HP 3PH 208 V or 230 V 1765 RPM 22 A   (List Price)  $42,999.00
Optional Motors
7.5 HP 3PH 460 V 1765 RPM 11 A  (List Price)  $43,299.00
7.5 HP 3PH 575 V 1770 RPM 8 A    (List Price)  $43,699.00
7.5 HP 1PH 230 V 1765 RPM 36 A  (List Price)  $43,299.00

PUNCH
Rating                  110 Tons  (65,000 PSI Tensile)
Max. Capacity      1-3/8″ Dia. in 1″ A36
Stroke                  3″
Throat Depth       17-3/4″
Open Height        9-3/4″
Shut Height         6-9/16″
Work Height        37-1/2″

FLAT BAR SHEAR
Rating                  65 Tons
Max. Capacity      3/8″ x 24″  1/2″ x 14″  1″ x 4″
Max. Round         1″
Max. Square        1″
Work Height         33-1/2″

ANGLE SHEAR
Max. Capacity     5″ x 5″ x 3/8″
Work Height        44″

COPER NOTCHER
Max. Capacity     2-1/2″ x 6″ x 3/8″
Work Height       35-5/8″

OPEN CAVITY
Height                9″
Width                 11-3/4″
Work Height       40-7/8″

Hydraulic Pump
10-1/2 GPM – 2 Stage

Valve Pressure  3000 PSI
Reservoir           17 Gallons
Cylinder
(Punch Side)     7-1/2″ Bore / 3″ Ram
Cylinder
(Shear Side)      6″ Bore / 3-1/2″ Ram

DIMENSIONS
Height              65-1/8″
Width               91-9/16″
Depth               44-7/8″
Shipping Weight 8580 lb

Powerful and efficient, this dual operator Elite 110/65 Ton Edwards Ironworker can power 2 tools simultaneously so 2 people can be working in it at the same time. The Edwards 110 + 65 Ton Ironworker “Dual Station” includes the Hydraulic Power Accessory Pack and it will power additional accessory tooling like the pipe bender, new radius roller, shop press & more, so even more can get done in your shop.

Calculate Tonnage Required For a Particular Punch Job



Elite 110/65 Ton Edwards Ironworker

Standard Tooling

pedestal die tablePedestal Die Table Punch is standard allows for the punching of flange or web surfaces of 2″ x 2″ steel angle, channel and beam. The punch has the power to punch a 1-3/8 inch hole is up to 1 inch steel plate.

Flat Bar Shear

Flat Bar Shear in the Elite 110/65 ton Edwards ironworker has a capacity to shear 3/8 inch plate up to a 24″ width or a 1/2″ thick plate up to 14 inches width. From 10″ to 24″ in width

angle shearAngle Shear ( 5″ x 5″ up to 1/4 inch thick) cuts both thin and thick steel angle.
coper-notcherCoper Notcher – Is  a standard option, – notch a 2-1/2 x 6 x 3/8 inch piece off a plate, barstock or angle
