55 Ton Edwards Ironworker

The 55 ton Edwards Ironworker is the most popular of the Edwards line. In addition to a powerful punching station the 55 Ton ironworkers includes a flat bar shear and angle shear. Optional tooling can be added in the open station, like pipe notcher, coper notcher and more. The 55 ton unit has plenty of power to drive the * * Powerlink System.
So this ironworker has the combination of most commonly used tooling, the power to use them and the ability for expansion with additional ironworker mounted tooling and driving other hydraulic too with the Powerlink System. No wonder it is the most popular.

FREE SHIPPING + on Edwards Ironworkers (including 6 punch dies) +

Call me, Jason, at  1-800-748-9068  and get your best quote !
Thanks for visiting
Let me answer any questions and direct you to the best ironworker for your application
for the best price.
BUY or LEASE

Everyday is family value day

55 Ton Ironworker 230V single phase with PowerLink



55 ton edwards ironworker

55 Ton Edwards Ironworker – with PowerLink System Installed

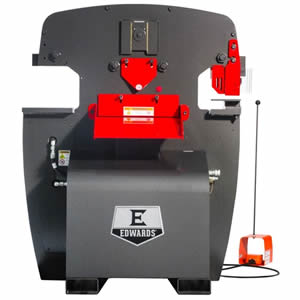

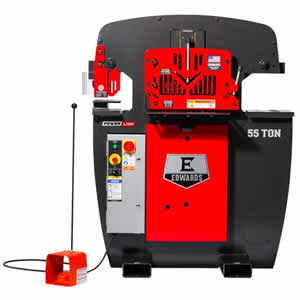

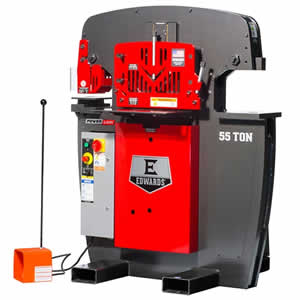

full front 55 ton55 ton from rear55 ton facing left

55 Ton Ironworker Specifications

Standard Motor
5 HP 3~ 208 V or 230 V 1725 RPM 14 A   (list Price) $11,299.00

Optional Motors
5 HP 3~ 460 V 1725 RPM 7 A                   (list Price) $11,599.00
5 HP 3~ 575 V 1725 RPM 6 A                   (list Price) $11,999.00
5 HP 1~ 230 V 1725 RPM 23 A                 (list Price) $11,599.00

Powerlink Optional                         (list price) $1,100.00
 Call Us For your Best Discount Price

PUNCH
Rating                        55 Tons (65,000 PSI Tensile)
Max. Capacity           1-1/16″ Dia. in 5/8″ A36
Stroke                        1-1/4″
Throat Depth             7-1/2″
Open Height              8-1/8″
Shut Height               6-7/8″
Work Height              36-9/16″

FLAT BAR SHEAR
Max. Capacity          3/8″ x 14″ or 1/2″ x 12″ or 3/4″ x 4″
Max. Round             7/8″
Max. Square            7/8″
Work Height            34-1/2″

ANGLE SHEAR
Max. Capacity         3″ x 3″ x 3/8″ or 4″ x 4″ x 1/4″
Work Height            39-7/8″

OPTIONAL COPER NOTCHER
Max. Capacity        2-1/2″ x 4″ x 5/16″
Work Height           39-1/2″

OPEN STATION
Throat Depth        11-3/16″
Open Height         8-1/8″
Shut Height          6-7/8″
Stroke                  1-1/4″
Work Height        34-1/2″

GENERAL SPECIFICATIONS

Hydraulic Pump   3-1/2 GPM – 1 Stage
Valve Pressure             2500 PSI
Reservoir                     7 Gallons
Cylinder                       2-1/2″ Ram

DIMENSIONS
Height                    55-1/4″
Width                     44-3/8″
Depth                    36-1/8″
Shipping Weight    2480 lb

55 Ton Ironworker PDF

shipped from here

Here’s One Leaving our store to a customer who needed it fast! – Shipped from our stock

Here’s A Great Configuration Idea

To Speed up production our customer installed a second punch unit on his 55 Ton Edwards Ironworker.

This company is a manufacturer of utility trailers. These are the flatbed trailers available to attach to trucks and cars. They are fabricated out of angled steel parts joined together. The bed and sidewalls can be composed of either expanded metal or 2 x 6 timber.

The steel angle requires two different sized punched holes for attachment. By adding the second punch unit to the 55 Ton Ironworker’s Open station he saves significant time which would have been spent changing punch dies.

Jobs go through faster to meet distributor demands.

Great Idea!

** The Powerlink System allows this ironworker to power accessory tooling: 10 or 20 Ton Shop Press, 10 Ton Pipe/Tube Bender, Pipe, Tube & Section Radius Roller. Powerlink System is an option that must factory installed on new ironworkers.

* Free shipping in continental US only, additional charges for Alaska & Hawaii. ( but we can do better)



Calculate Tonnage Required For a Particular Punch Job




pedestal die tablePedestal Die Table Punch is the standard on the 55 ton Edwards Ironworker. It allows for the punching of flange/web surfaces of 2″ steel angle, channel & beam. This ironworker will punch through 5/8 steel with up to 1-1/16 inch hole.

Punch Rating55 Tons
Maximum Capacity1-1/16 inch in 5/8 inch A36 Steel (65 K PSI)
Stroke1-1/4 inch
Throat 7-1/2 inch
Height when open8 -1/8 inch
Height shut6-7/8 inch
Work height39-1/2 inch




Flat Bar ShearFlat Bar Shear The standard on the 55 ton unit will shear up to 14 inches wide (3/8″ thick).

Maximum Capacity3/8 x 14 inch
1/2 x 12 inch
3/4 x 4 inch
Maximum Round7/8 inch
Maximum Square7//8 inch
Work Table Height34-1/2″




angle shearAngle Shear The 55 ton Edwards ironworker angle shear will cut a 3 x 3 x 3/8 or 4 x 4 x 1/4 inch angle.

Maximum Capacity3 x 3 x 3/8 inch
4 x 4 x 1/4 inch
Work Height40 Inch




OPen StationOpen Station Stand 55 ton ironworker ship with an open station which allows for adding another tooling option to this ironworker. Select from

Optional Coper Notcher (suggested for many fabshops)

Maximum Capacity2 1/2 x 4 x 5/16 inch






Stacey David is demonstrating the old style Ironworker – model updated in 2016



Ques: Will this ironworker punch 2″ angle iron. Answer: Yes – typically no problem. Hang leg without hole down front of pedestal die table… in some rare cases an offset die is available for tight spaces.

Can a 55 Ton Ironworker punch a standard oblong hole 13/16″ x 1″ is a 5/16″ thick piece of A36 material ?

With an oblong punch and die set it will be no problem.  Call Jason for details and pricing.
