75 Ton Edwards Ironworker

75 Ton Edwards Ironworker can punch 1-1/16 diameter holes through 7/8th inch steel, that is power. This ironworker also includes a flat bar shear, rod shear, coper notcher and angle shear. It can power additional Edwards shop equipment if  the ** Powerlink System is ordered with the ironworker.

FREE SHIPPING on Edwards Ironworkers + select 6 sets of punches +

Call me, Jason, at  1-800-748-9068  and get your best quote !
Thanks for visiting
Let me answer any questions and direct you to the best ironworker for your application
for the best price.
BUY or LEASE

75 ton Edwards Ironworker - call for your price

75 ton Edwards Ironworker show with PowerLink – call for your best price

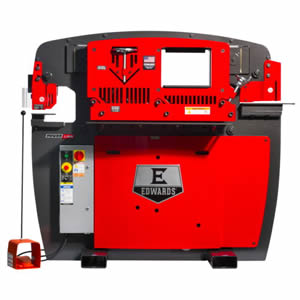

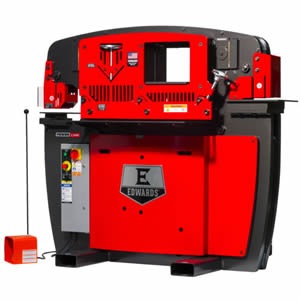

75 ton ironworker from the frontThe back of the 75 ton Edwards IronworkerFacing left 75 ton ironworker

75 Ton Edwards Ironworker Specifications

Standard Motor
5 HP 3PH 208 V or 230 V 1765 RPM 22 A   (list Price)  $18,999.00
Optional Motors
7.5 HP 3PH 460 V 1765 RPM 11 A         (list Price)  $19,299.00
7.5 HP 3PH 575 V 1770 RPM 8 A           (list Price)  $19,699.00
5 HP 1PH 230 V 1725 RPM 23 A            (list Price)  $19,299.00
*7.5 HP 1~ 230 V 1765 RPM 36 A           (list Price)  $19,299.00
*Required for 1PH Hydraulic Accessory Pack (PowerLink)
PowerLink          (list Price)  $1,300.00
  Call Us For Your Best Discount

PUNCH
Rating 75 Tons
Max. Capacity 1-1/16″ Dia. in 7/8″ A36
(65,000 PSI Tensile)
Stroke 1-13/16″
Throat Depth 10″
Open Height 8-3/4″
Shut Height 6-15/16″
Work Height 39-1/16″

FLAT BAR SHEAR
Max. Capacity 1/2″ x 14″
3/4″ x 10″
Max. Round 1″
Max. Square 1″
Work Height 37″
ANGLE SHEAR
Max. Capacity 5″ x 5″ x 1/2″
Work Height 43-15/16″

COPER NOTCHER
Max. Capacity 2-1/2″ x 5″ x 1/2″
Work Height 42″

Hydraulic Pump
10-1/2 GPM – 2 Stage

Valve Pressure 3500 PSI
Reservoir 17 Gallons
Cylinder 3-1/2″ Ram
DIMENSIONS
Height 60-1/4″
Width 50″
Depth 45″
Shipping Weight 4100 lb

** The Powerlink System allows ironworker to power accessory tooling: 10 or 20 Ton Shop Press, 10 Ton Pipe/Tube Bender, Pipe, Tube & Section Radius Roller. Powerlink System is factory installed on new ironworkers.

* Free shipping in continental US only, additional charges for Alaska & Hawaii.
we’ll do better

Calculate Tonnage Required For a Particular Punch Job75 Ton Edwards Ironworker

Standard Tooling

pedestal die table punchThe 75 Ton Edwards Ironworker includes the Pedestal Die Table Punch which allows for the punching of flange or web surfaces of 2″ x 2″ steel angle, channel and beam.

Flat Bar Shear

Flat Bar Shear  on this ironworker can shear up 14″ in width

angle shearAngle Shear  cuts both thin and thick steel angle up to a 5 x 5 inch steel angle.
coper-notcherCoper Notcher – notch a piece off a plate, barstock or angle
