What is special about the Elite 110 Ton Edwards Ironworker? It is very powerful, has the Powerlink System built in, so this ironworker can power multiple additional hydraulic accessories. Unit has a hydraulic hold-down, LED lighting, Centralized coolant/lubrication system and much more, including a Universal Open station, which will accept any optional tooling station. Standard tooling is a punch that can punch 1-3/8 hole through 1 inch steel plate, a 14 inch wide flat bar shear &  angle shear.

FREE SHIPPING on Edwards Ironworkers + select 6 sets of punches +

Call me, Jason, at  1-800-748-9068  and get your best quote !
Thanks for visiting
Let me answer any questions and direct you to the best ironworker for your application
for the best price.
BUY or LEASE

Elite 110 Ton Ironworker - Includes PowerLink System - get it for less
Elite 110 Ton Ironworker – Includes PowerLink System, Standard

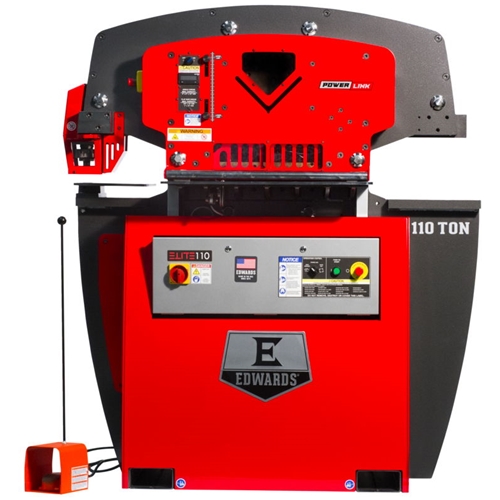

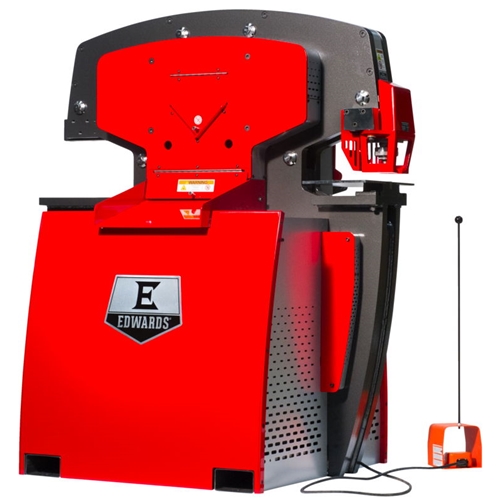

110 ton elite iroworker facing front 120 ton elite edwards ironworker from the rear 110 elite edwards ironworker facing left



Edwards Elite 110 Ton Ironworker Specifications

Standard Motor
7.5 HP 3PH 208 V or 230 V 1765 RPM 22 A  (list Price) $30,999.00
Optional Motors
7.5 HP 3PH 460 V 1765 RPM 11 A   (list Price) $31,299.00
7.5 HP 3PH 575 V 1770 RPM 8 A    (list Price) $31,699.00
7.5 HP 1PH 230 V 1765 RPM 36 A  (list Price) $31,299.00
Call Us for Your Best Discount

PUNCH
Rating                    110 Tons (65,000 PSI Tensile)
Max. Capacity        1-3/8″ Dia. in 1″ A36
Stroke                    1-13/16″
Throat Depth         11-3/4″
Open Height           8-5/8″
Shut Height            6-13/16″
Work Height           41″

FLAT BAR SHEAR
Max. Capacity       3/4″ x 14″  1″ x 12″
Max. Round          1-1/4″
Max. Square         1-1/4″
Work Height          41-1/2″

ANGLE SHEAR
Max. Capacity       6″ x 6″ x 1/2″
Work Height          50-7/8″

OPTIONAL COPER NOTCHER
Max. Capacity      2-1/2″ x 6″ x 1/2″
Work Height         44-3/16″

OPEN STATION
Throat Depth       15-1/2″
Open Height        8-5/8″
Shut Height          6-13/16″
Stroke                  1-13/16″
Work Height         39-3/16″

Hydraulic Pump      10-1/2 GPM – 2 Stage
Valve Pressure          3000 PSI

Reservoir                   17 Gallons
Cylinder                     3-1/2″ Ram

DIMENSIONS
Height                       66-1/16″
Width                        57-1/4″
Depth                        42-3/8″
Shipping Weight      5380 lb



The Edwards 110 Ton Elite Ironworker includes the Edwards Powerlink System so it can be the center piece of a variety of tooling accessories, like the pipe bender, radius roll, shop press, and more.

Calculate Tonnage Required For a Particular Punch Job

Elite 110 Ton Edwards Ironworker

Standard Tooling

pedestal die tablePedestal Die Table Punch allows for the punching of flange or web surfaces of 2″ x 2″ steel angle, channel and beam on the Elite 110 Ton Edwards Ironworker.

Flat Bar Shear

Flat Bar Shear Capacity at 3/4″  is a width of 14  –  at 1″ thick width to 12

angle shearAngle Shear cuts both thin and thick steel angle. The 110 Elite can handle angle up to 6″ x 6″ x 1/2″ thick.
Open StationPurchase an additional tool, if desired
