The 100 ton deluxe edwards ironworker has it all. The 100 Ton Deluxe Ironworker is loaded with 5 workstations and 100 Ton of hydraulic power. Punching up to a 1-1/16 hole in 1 inch steel. This ironworker also includes an angle shear, flat bar shear, rod shear and a coper notcher. With the ** Powerlink System, it will also power Edwards hydraulic accessories like the 10 ton pipe & tube bender, shop press and press brake, making it the center of a fab shop. This is one powerful ironworker.

FREE SHIPPING on Edwards Ironworkers + select 6 sets of punches +

Call me, Jason, at  1-800-748-9068  and get your best quote !
Thanks for visiting
Let me answer any questions and direct you to the best ironworker for your application
for the best price.
BUY or LEASE



100 ton deluxe edwards ironworker - call for discount
100 Ton Deluxe Ironworker – Shown with PowerLink System Installed — Get a great quote now —

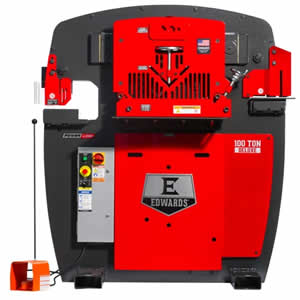

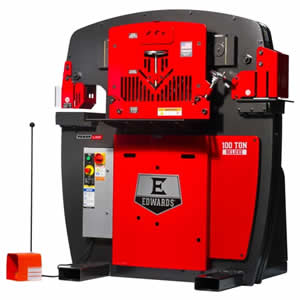

100 ton deluxe edwards ironworker - call for discount 100 ton deluxe edwards ironworker - call for discount 100 ton deluxe edwards ironworker facing left- call for discount



100 Ton Deluxe Ironworker Specifications

Standard Motor
10 HP 3PH 208 V or 230 V 1770 RPM 26 A   (List Price) $28,499.00
Optional Motors
10 HP 3PH 460 V 1770 RPM 12 A  (List Price) $28,799.00
10 HP 3PH 575 V 1770 RPM 10 A  (List Price) $29,199.00
10 HP 1PH 230 V 1740 RPM 40 A  (List Price) $30,999.00
PowerLink    (List Price) $1,300.00

PUNCH
Rating 100 Tons         (65,000 PSI Tensile)
Max. Capacity            1-1/16″ Dia. in 1″ A36
Stroke                        1-15/16″
Throat Depth             11″
Open Height              8-3/4″
Shut Height               6-13/16″
Work Height              39-3/8″

FLAT BAR SHEAR
Max. Capacity          1/2″ x 18″ 3/4″ x 14″ 1″ x 10″
Max. Round             1″
Max. Square            1″
Work Height            37″

ANGLE SHEAR
Max. Capacity         6″ x 6″ x 1/2″
Work Height            43-15/16″

ROD SHEAR
Max. Round            1-1/2″
Max. Square           1-1/4″
Work Height            54-1/2″

COPER NOTCHER
Max. Capacity         3″ x 6″ x 1/2″
Work Height           42″

Hydraulic Pump    24 GPM
Valve Pressure       3800 PSI
Reservoir               17 Gallons
Cylinder 2-1/2″       Ram

DIMENSIONS
Height                   63-1/8″
Width                    56″
Depth                    45-1/2″
Shipping Weight  5180 lb





100 Ton Deluxe Edwards Ironworker

** The “Powerlink System” allows ironworker to power accessory tooling: 10 or 20 Ton Shop Press, 10 Ton Pipe/Tube Bender, Pipe, Tube & Section Radius Roller. Powerlink System is factory installed on new ironworkers.

* Free shipping in continental US only, additional charges for Alaska & Hawaii.
we’ll do better than that

Call and get you questions answered

100 Ton Deluxe Edwards Ironworker

Standard tooling

pedestal die table standard on 100 ton deluxe edwards ironworkerThe 100 ton deluxe edwards ironworker punch can put a 1-1/16 hole through 1 inch steel plate!  Pedestal Die Table Punch – is standard for flange or web surfaces of 2″ x 2″ steel angle, channel, beam.
Flat Bar ShearFlat Bar Shear  On this ironworker work for up to 18″ wide x 1/2″ thick” steel.
angle shearAngle Shear cuts both thin and thick steel angle up to a 6 x 6.
coper-notcherCoper Notcher – notch a piece off a plate, barstock or angle up to 1-1/2 x 6 x 1/2″
Rod ShearRod Shear & Housing Shears Solid Rod up up 1-1/2″ round and 1-1/4 inch square rod
