60 Ton Edwards Ironworker

60 ton edwards ironworker – powerful and versatile, with 4 stations standard, including the pedestal die table punch station, flat bar shear, angle shear and a coper notcher. If ordered with the ** Powerlink System accessory ( factory install only) the 60 ton unit can easily power additional hydraulic accessories like the 10 ton pipe & tube bender, shop press, press brake and more.

FREE SHIPPING + on Edwards Ironworkers + select 6 sets of punches +

Call me, Jason, at  1-800-748-9068  and get your best quote !
I’ll answer your questions and make an honest recommendation for the right ironworker.
I can save you some trouble and save you some dollars.
BUY or LEASE

60 ton edward ironworker - call for discount

60 Ton Edwards Ironworker – with PowerLink Installed

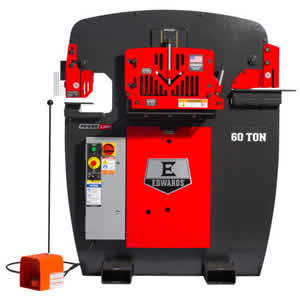

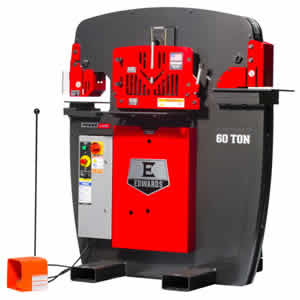

facing left 60 ton - call for discount full front 60 ton - call for discount full front 60 ton - call for discount

60 Ton Edwards Ironworker Specifications

Standard Motor    5 HP 3PH 208 V or 230V  1725 RPM 14A (List Price)  $12,599.00

Optional Motors 5 HP 3PH 208 V or 230V  1725 RPM 14A (List Price)  $12,599.00
           5 HP 3PH 575 V 1725 RPM 6 A (List Price) $13,299.00
           5 HP 1PH 230 V 1725 RPM 23 A (List Price) $12,899.00
PowerLink             (List Price)  $1,100.00
Call For Our Best Discount Price

Punch
Rating 60 Tons
Max. Capacity          1″ Dia. in 3/4″ A36   (65,000 PSI Tensile)
Stroke                      1-1/4″
Throat Depth            8-7/8″
Open Height             8-1/8″
Shut Height              6-7/8″
Work Height            36-9/16″

FLAT BAR SHEAR
Max. Capacity          3/8″ x 14″    1/2″ x 12″    3/4″ x 4″
Max. Round             7/8″
Max. Square            7/8″
Work Height            34-1/2″

ANGLE SHEAR
Max. Capacity        3″ x 3″ x 1/2″    4″ x 4″ x 3/8″
Work Height           39-7/8″

COPER NOTCHER
Max. Capacity       2-1/2″ x 4″ x 3/8″
Work Height          39-1/2″

Hydraulic Pump  3-1/2 GPM – 1 Stage
Valve Pressure     2500 PSI
Reservoir             7 Gallons
Cylinder               2-1/2″ Ram

DIMENSIONS
Height                56-1/8″
Width                 46-1/8″
Depth                 36-1/8″
Shipping Weight      2550 lb



[/one_half_last]

[/raw]

** The Powerlink System allows ironworker to power accessory tooling: 10 or 20 Ton Shop Press, 10 Ton Pipe/Tube Bender, Pipe, Tube & Section Radius Roller.
Powerlink System is factory installed on new ironworkers.
* Free shipping in continental US only, additional charges for Alaska & Hawaii.

Calculate Tonnage Required For a Particular Punch Job



60 Ton Edwards Ironworker

Standard Tooling

pedestal die tablePedestal Die Table Punch is the standard on this 60 ton edwards ironworker which allows for the punching of flange or web surfaces of 2″ x 2″ steel angle, channel and beam.





Flat Bar Shear

Flat Bar Shear  for this ironworker can shear up to 14 inches wide.







angle shear The Angle Shear on this machine can cut up a 4 x 4 steel angle.







coper-notcherCopper Notcher for notching up to 2-1/2 x 4 x 3/8
