The 100 Ton Edwards Ironworker is a powerhouse. Packing a 100 Ton punch it can punch through 1 inch steel plate with up to 1-1/16 inch hole. This 100 ton unit also comes with a flat bar shear and an angle shear. There is also an open station to easily add another tool
This 100 ton ironworker  also has plenty of power for the Hydraulic Accessories available from Edwards, if ordered with the ** Powerlink System.

FREE SHIPPING on Edwards Ironworkers

Call us at  1-800-748-9068  and get your best quote !
Thanks for visiting
Let me answer any questions and direct you to the best ironworker for your application
for the best price.
BUY or LEASE

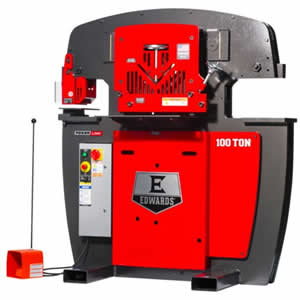

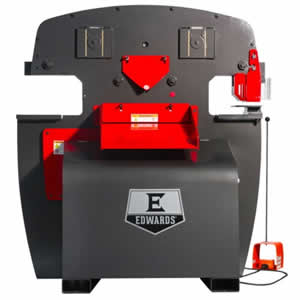

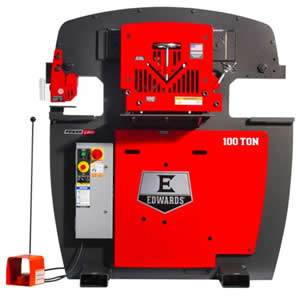

full front 100 ton back view of the 100 ton ironworker 100 ton ironworker



100 Ton Edwards Ironworker Specifications

Standard Motor
7.5 HP 3PH  208 V or 230 V 1765 RPM 22 A
Optional Motors
7.5 HP 3PH  460 V 1765 RPM 11 A
7.5 HP 3PH  575 V 1770 RPM 8 A
5 HP 1PH  208 V or 230 V 1725 RPM 23 A
*7.5 HP 1PH 230 V 1765 RPM 36 A
*Required for 1PH
Hydraulic Accessory Pack
PowerLink
Call us for your best discount price and the right ironworker

PUNCH
Rating 100 Tons
Max. Capacity 1-1/16″ Dia. in 1″ A36
(65,000 PSI Tensile)
Stroke 1-13/16″
Throat Depth 11″
Open Height 8-3/4″
Shut Height 6-15/16″
Work Height 39-1/16″

FLAT BAR SHEAR
Max. Capacity 3/4″ x 14″
1″ x 10″
Max. Round 1-1/4″
Max. Square 1-1/4″
Work Height 37″

ANGLE SHEAR
Max. Capacity 6″ x 6″ x 1/2″
Work Height 43-15/16″

OPTIONAL COPER NOTCHER
Max. Capacity 2-1/2″ x 6″ x 1/2″
Work Height 42″

OPEN STATION
Throat Depth 14-3/4″
Open Height 8-3/4″
Shut Height 6-15/16″
Stroke 1-13/16″
Work Height 37″

Hydraulic Pump
10-1/2 GPM – 2 Stage

Valve Pressure 3500 PSI
Reservoir 17 Gallons
Cylinder 3-1/2″ Ram

DIMENSIONS
Height 61-11/16″
Width 56-1/8″
Depth 45″
Shipping Weight 4650 lb

** The Powerlink System allows the ironworker to power accessory tooling: 10 or 20 Ton Shop Press, 10 Ton Pipe/Tube Bender, Pipe, Tube & Section Radius Roller. Powerlink System must be factory installed on new ironworkers.

Calculate Tonnage Required For a Particular Punch Job

100 Ton Edwards Ironworker Standard Tooling

pedestal die tableThe 100 ton edwards ironworker punch can make 1-1/16th hole in 1″ steel plate – Pedestal Die Table Punch is standard and allows for punching flange or web surfaces of 2″ x 2″ steel angle, channel and beam.

100 ton edwards ironworker Flat Bar Shear

The Flat Bar Shear  on the 100 ton edwards ironworker can shear a steel plate up to 14 inches wide

angle shearAngle Shear up to 6 x 6 angle
Open StationPurchase an additional tool, if desired
