65 Ton Edwards Ironworker

65 Ton Edwards Ironworker is a very powerful ironworker featuring Punch, Flat Bar Shear, Angle Shear a Coper Notcher plus an open station for additional tooling. The punch on this unit can punch up to 1-1/16th diameter hole in 3/4 inch steel. This ironworker can power the ** Powerlink System option.

FREE SHIPPING on Edwards Ironworkers + select 6 sets of punches +

Call me, Jason, at  1-800-748-9068  and get your best quote !
Thanks for visiting
Let me answer any questions and direct you to the best ironworker for your application
for the best price.
BUY or LEASE



65 Ton Edwards Ironworker - Sale

65 Ton Edwards Ironworker – Shown with powerlink System Installed

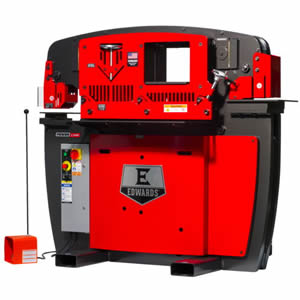

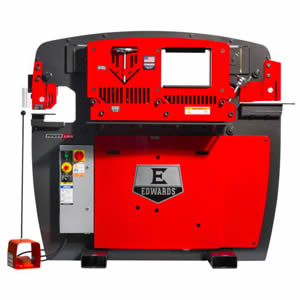

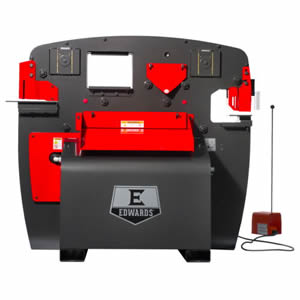

65 ton ironworker full front - call for best price65 ton back - looking for a deal?65 ton facing left - is the right machine for you?

65 Ton Edwards Ironworker Specifications

Standard Motor
7.5 HP 3~ 208 V or 230 V 1765 RPM 22 A  (list Price) $19,799.00
Optional Motors
7.5 HP 3PH 460 V 1765 RPM 11 A      (list Price) $20,099.00
7.5 HP 3PH 575 V 1770 RPM 8 A        (list Price) $20,499.00
5 HP 1PH 230 V 1725 RPM 23 A         (list Price) $20,099.00
*7.5 HP 1PH 230 V 1765 RPM 36 A    (list Price) $20,099.00
*Required for 1PH Hydraulic Accessory Pack
PowerLink            (list Price) $1,200.00
Call For Your Best Discount Price

PUNCH
Rating 65 Tons  (65,000 PSI Tensile)
Max. Capacity               1-1/16″ Dia. in 3/4″ A36
Stroke                           1-13/16″
Throat Depth                 9-3/4″
Open Height                  8-3/4″
Shut Height                   6-15/16″
Work Height                  36-9/16″

FLAT BAR SHEAR
Max. Capacity              3/8″ x 24″   1/2″ x 14″   1″ x 4″
Max. Round                 1″
Max. Square                1″
Work Height                34-1/2″

ANGLE SHEAR
Max. Capacity              5″ x 5″ x 3/8″
Work Height                 43-1/2″

COPER NOTCHER
Max. Capacity             2-1/2″ x 5″ x 3/8″
Work Height                39-1/2″

OPEN CAVITY
Height                         8-3/4″
Width                          12″
Work Height                43″

Hydraulic Pump
10-1/2 GPM – 2 Stage

Valve Pressure           3500 PSI
Reservoir                    17 Gallons
Cylinder                      3-1/2″ Ram

DIMENSIONS
Height                        57″
Width                         62-1/8″
Depth                        45″
Shipping Weight       4750 lb





** The Powerlink System allows ironworker to power accessory tooling: 10 or 20 Ton Shop Press, 10 Ton Pipe/Tube Bender, Pipe, Tube & Section Radius Roller. Powerlink System is factory installed on new ironworkers.

* Free shipping in continental US only, additional charges for Alaska & Hawaii.

Calculate Tonnage Required For a Particular Punch Job

65 Ton Edwards IronworkerStandard Tooling

pedestal die tablePedestal Die Table Punch attachment is standard for the 65 ton edwards ironworker which allows for the punching of flange or web surfaces of  steel angle, channel and beam. Holes up to 1-1/16 in 3/4 steel.
Flat Bar Shear Flat Bar Shear  From 10" to 24" in width this unit 3/8 x 24 in or 1 inch x 4in
angle shear Angle Shear on the 65 ton edwards ironworker cuts both thin and thick steel angle.up to 5 x 5 x 3/8 inch
coper-notcherCoper Notcher - notch a piece off a plate, barstock or angle - 2-1/2 x 5 x 3/8 inch
Open StationThe open station lets you easily expand your ironworker to do even more - add optional tooling
