25 ton Edward ironworker is lowest tonnage Edwards ironworker, but is a workhorse for small fab shops or at home metal working. It’s punch station makes quick precise holes in steel sheet and plate. The open station allows for this ironworker to take on additional tasks as well, when optional tooling is added.

FREE SHIPPING + on Edwards Ironworkers + select FREE 6 sets of punches

Call me, Jason, at  1-800-748-9068  and get your best quote !
I’ll answer your questions and make an honest recommendation for the right ironworker.
I can save you some trouble and WILL save you some dollars.
BUY or LEASE

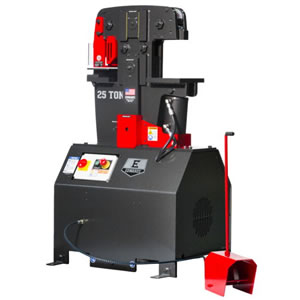

Facing Right

Facing Left frontal view Back of 25 ton ironworker



25 Ton Edwards Ironworker Specification

Standard Motor
1 HP single phase  208 V or 230 V1725 RPM 14 A   (list price $6,399)
Optional Motors
1 HP single phase 120V 1725 RPM 14 A                  (list price $6,399)
Call Us For Discount

PUNCH

(65,000 PSI Tensile)Rating 25 Tons

Max. Capacity 1″ Dia. in 5/16″ A36 Steel

Stroke              1″
Throat Depth   5-1/2″
Open Height    7″
Shut Height     6″
Work Height    38-1/2″

OPEN STATION

Stroke             1″
Throat Depth  5″
Open Height   8″
Shut Height    7″
Work Height   35-3/4″

GENERAL SPECIFICATIONS

Hydraulic Pump 11 GPM – 2 Stage
Valve Pressure   2750 PSI
Reservoir            3 Gallons
Cylinder              1-3/4″ Ram

DIMENSIONS
Height                 55″
Width                  29″
Depth                  23″
Shipping Weight 1000 lb



25 Ton Edwards Ironworker

This ironworker is a great tool for a very small fabrication shop or for a home metalworker. It includes a punch which can make a 1″ hole in 5/16″ steel. The optional Station allows for adding any of a number of additional tools.
* Free shipping in continental US only, additional charges for Alaska & Hawaii. We can do better
Calculate Tonnage Required For a Particular Punch Job





25 Ton Edwards Ironworker

Standard Tooling

[raw]

pedestal die table punchPedestal Die Table Punch is the standard on the 25 ton edwards ironworker, for the punching of flange/web surfaces of 2″ steel angle, channel & beam.

Open StationThe open Station will accept a lot of the other types of tooling available from Edwards, notchers and shears, etc.
