40 Ton Edwards Ironworker

The 40 Ton Edwards Ironworker supplies enough hydraulic power for many small shop functions. The punch can penetrate a 1/2 inch thick piece of steel with an hole up 1 inch in diameter. There are two shear stations, one for angle and one for flats. There is an open station, which would allow for the addition of a coper notcher or other optional tooling. This is the smallest Edwards Ironworker that can accommodate the ** Powerlink System.

FREE SHIPPING on Edwards Ironworkers + select 6 sets of punches +

Call me, Jason, at  1-800-748-9068  and get your best quote !
Thanks for visiting
Let me answer any questions and direct you to the best ironworker for your application
for the best price.
BUY or LEASE

40 ton edwards ironworker - call to save

40 ton edwards ironworker – call to save

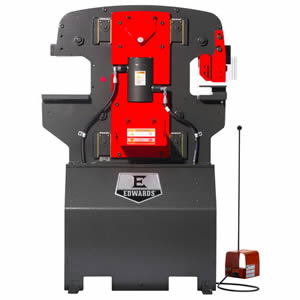

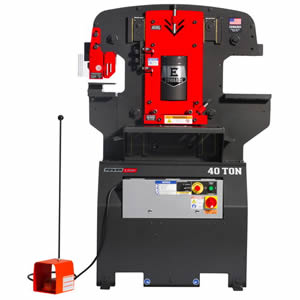

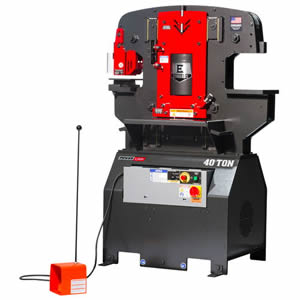

40 ton ironworker front view - call us 40 ton back - looking for a deal? 40 ton facing left - is the right machine for you?



40 Ton Edwards Ironworker Specifications

Standard Motor 5 HP 3PH 208 V or 230 V 1725 RPM 14 A (List Price) $9,299.00
Optional Motors
5 HP 3PH 460 V 1725 RPM 7 A     (List Price) $9,599.00

5 HP 3PH 575 V 1725 RPM 6 A     (List Price) $9,999.00
5 HP 1PH 230 V 1725 RPM 23 A   (List Price) $9,599.00
Power Link Option                        (List Price) $1,100.00
Call for your best Discounted Price

PUNCH
Rating                    40 Tons  (65,000 PSI Tensile)
Max. Capacity        1″ Dia. in 1/2″ A36
Stroke                    1-3/8″
Throat Depth         7″
Open Height          8″
Shut Height           6-5/8″
Work Height          41-1/2″

ANGLE SHEAR
Max. Capacity:      3″ x 3″ x 1/4″
Work Height          52-1/2″

FLAT BAR SHEAR
Max. Capacity       3/8″ x 10″  1/2″ x 6″
Work Height          33-1/2″

OPTIONAL COPER NOTCHER
Max. Capacity       2″ x 3″ x 5/16″
Work Height          35-3/4″

OPEN STATION
Stroke                   1-3/8″
Throat Depth         7-3/4″
Open Height          8″
Shut Height           6-5/8″
Work Height          35-3/4″

Hydraulic Pump
3-1/2 GPM – 1 Stage

Valve Pressure     2750 PSI
Reservoir             7 Gallons
Cylinder               8-1/2″ – 2-1/2″ Ram

DIMENSIONS
Height                 60-1/2″
Width                  32″
Depth                 23″
Shipping Weight 1900 lb

40 Ton Edwards Ironworker

** The Powerlink System allows ironworker to power accessory tooling: 10 or 20 Ton Shop Press, 10 Ton Pipe/Tube Bender, Pipe, Tube & Section Radius Roller. Powerlink System is factory installed on new ironworkers.

* Free shipping + in continental US only, additional charges for Alaska & Hawaii.

Calculate Tonnage Required For a Particular Punch Job



pedestal die table punchPedestal Die Table Punch an attachment for the punching of flange/web surfaces of 2" steel angle, channel & beam. The punch on this unit can do 1" dia. in 1/2 steel!
Flat Bar ShearFlat Bar Shear the 40 Ton can cut 3/8 Thickness X 10 in wide or 1/2 Thick X 6 in
angle shearAngle Shear cuts both thin and thick steel angle, This unit can cut 3 x 3 x 1/4 angle.inch.
OPen Station

Optional Tooling

  • Coper Notcher
  • Angle Notcher
  • Pipe Notcher
  • Turret Pipe Notcher
  • Brake
